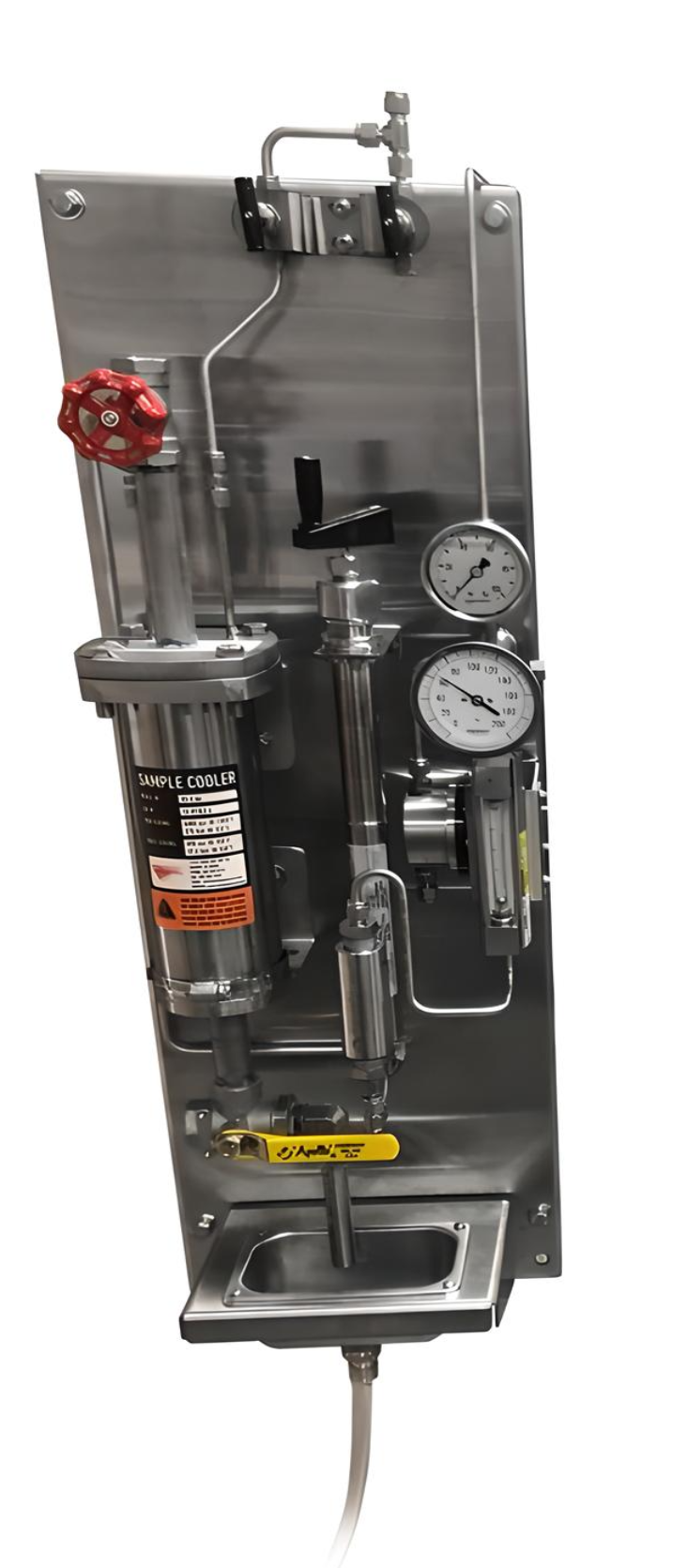

Steam Sample Conditioning Panel
Engineered for high-pressure and high-temperature applications, rated up to 3,000 psig and 1,000°F maximum. Mounted on a durable 304 stainless steel backplate (30" H x 12" W).

Features include:

• Sample cooler for efficient temperature regulation

• Variable capillary valve for precise control

• Back pressure regulator to maintain optimal system performance

• Pressure, temperature, and flow indicators for real-time monitoring

• Over-temperature thermal shutoff valve set at 140°F for safety

• Recommended flow rate: 250 cc/min

Sample cooler for efficient temperature regulation

Variable capillary valve for precise control

Back pressure regulator to maintain optimal system performance

Pressure, temperature, and flow indicators for real-time monitorin

Over-temperature thermal shutoff valve set at 140°F for safet

Recommended flow rate: 250 cc/mi

Optional upgrades:

• Larger sample coolers (SC3.5 or SC4.7) available for enhanced cooling capacity
